PRODUCTS

Kyoritsu 3005A

• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

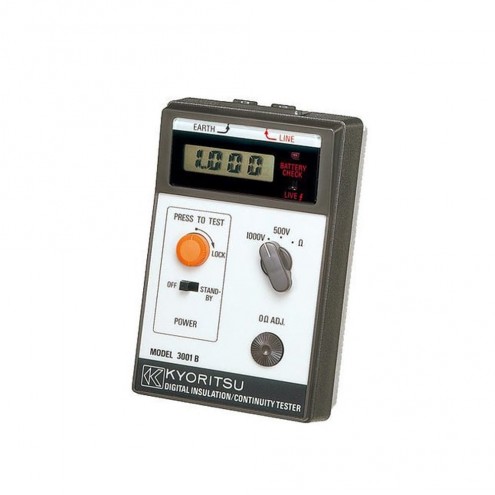

Kyoritsu 3001B

Compact and lightweight digital Insulation / Continuity Tester.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 4105A-H

Hard Case Model

• In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories (unit can be hung from the neck for simplified measurement).
• The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
• Dust and drip proof. (designed to IEC 60529 IP54)
• Earth resistance value can be read directly from the scale.
• Designed to meet IEC 61010-1 safety standard.
• Capable of measuring earth voltage.
• Small and lightweight. Shock resistant new case material.
• 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 4102A-H

Hard Case Model

• In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories (unit can be hung from the neck for simplified measurement).
• The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
• Dust and drip proof. (designed to IEC 60529 IP54)
• Earth resistance value can be read directly from the scale.
• Designed to meet IEC 61010-1 safety standard.
• Capable of measuring earth voltage.
• Small and lightweight. Shock resistant new case material.
• 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
• Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by “OK” lamp. Lead wire connection to C and E terminals is good when “OK” lamp is illuminated.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 4202

• Real time measurements can be transferred, shown and saved on Android device (up to 100 measurements)
• Saved data includes measurement, GPS location and date & time Easy to check on map "When" and "Where" the measurement was made
• Comparator function on Android device informs when the measured value is lower/higher than the preset value

Earth /Ground resistance and Leakage current measurement functions

• The earth resistance from 0.05 to 1500 ? can be measured without the auxiliary earth spikes in multi-earthing systems
• True RMS leakage or phase current readings from 0.1mA to 30.0A provides vital additional information in earthing networks
• Filter function offers increased immunity to electrical noise and a Noise mark appears in excessively high noisy environments

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 4200

• The earth resistance from 0.05 to 1500? can be measured without the auxiliary earth spikes (The Multiple Earthing System.)
• True RMS
• Accurate true RMS readings of AC current including distorted waveform from 1mA to 30.0A
• Noise Check Function
• A function to detect current, which effects on an earth resistance measurement and display "NOISE" mark on the LCD.
• Memory function
• Save and display up to 100 measurement data.
• Data hold function / Buzzer function / Back light function
• Compliant with Safety Standards of IEC 61010-1 : CAT IV 300V Pollution degree2

Note: A single earthing can not be measured. (Only for Multiple Earthing System)

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

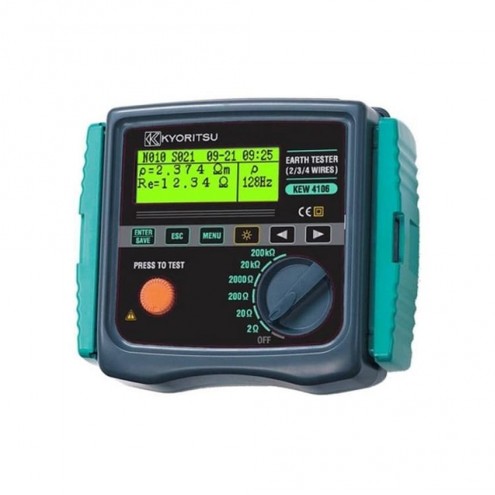

Kyoritsu 4106

• High test current up to 80mA yielding resolution of 0.001? on 2? range.
• Advanced Filtering method (based on FFT Fast Fourier Transform) reduces noise interference for obtaining stable measurements.
• Automatic and Manual selection of the Test Current Frequency in four bands (94/105/111/128Hz). In Automatic mode, KEW 4106 will select the most suitable Frequency.
• Several sub-results can be shown on the display: Resistance of the Auxiliary Earth Spikes, Frequency of Test Current, Voltage and Frequency of Interference (noise), Residual Resistance Rk, etc.
• Warning for excessive noise and high Auxiliary Earth Spikes resistance.
• Large Graphic Display with backlight for readings in poorly illuminated areas.
• Up to 800 measurement results can be saved in the memory and recalled on the display.
• The stored results can be transferred to a PC using the "KEW Report" software and a USB adaptor (Model 8212-USB) which are included.
• Robust design with IP54 protection.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 4105DL-H

Hard Case Model

• 3pole and 2pole Earth Resistance measurement (0.01?-2000?)
• Waterproof design (IP67)
• Rotary Switch makes the user interface very intuitive
• Large LCD Display with Backlight
• Led to monitor correct / non correct auxiliary earth spike resistance
• Earth Voltage Measurement (AC/DC 0-300V)
• CAT ? 100V

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 4105DL

Cable Reel Set Model

• 3pole and 2pole Earth Resistance measurement (0.01?-2000?)
• Waterproof design (IP67)
• Rotary Switch makes the user interface very intuitive
• Large LCD Display with Backlight
• Led to monitor correct / non correct auxiliary earth spike resistance
• Earth Voltage Measurement (AC/DC 0-300V)
• CAT ? 100V

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 4105A

Soft Case Model

• In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories (unit can be hung from the neck for simplified measurement).
• The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
• Dust and drip proof. (designed to IEC 60529 IP54)
• Earth resistance value can be read directly from the scale.
• Designed to meet IEC 61010-1 safety standard.
• Capable of measuring earth voltage.
• Small and lightweight. Shock resistant new case material.
• 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 4102A

Soft Case Model

• In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories (unit can be hung from the neck for simplified measurement)
• The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
• Dust and drip proof. (designed to IEC 60529 IP54)
• Earth resistance value can be read directly from the scale.
• Designed to meet IEC 61010-1 safety standard.
• Capable of measuring earth voltage.
• Small and lightweight. Shock resistant new case material.
• 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
• Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by “OK” lamp. Lead wire connection to C and E terminals is good when “OK” lamp is illuminated.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 2500

• 0.01mA resolution for DC current
• Top class measurement 0.2% accuracy
• Ø6mm clamp jaw easy to use in tight places
• Measurement from 0.01mA to 120.0mA
• Dual display with backlight shows both mA measurement and percent of 4-20 mA span
• Spotlight for illuminating measurement point
• Analog output terminal for recorder connection

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE
