PRODUCTS

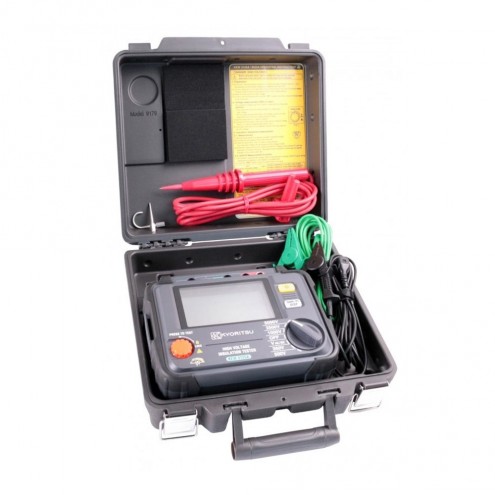

Kyoritsu 3125A

• Insulation Resistance up to 1T?
• Short-Circuit Current up to 1.5mA
• Wide Test Voltage from 250V to 5000V
• Diagnosis Function of PI and DAR
• Newly-designed alligator clip
• It comes with a tough hard case
• Filter function reduces noise interference for obtaining stable measurement
• Large display with Bar Graph indication and backlight
• Live voltage warning
• Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 3124A

• Permits a wide range of insulation testing up to 100G? at variable test voltage from 1kV to 10kV.
• DC voltage output for recorders.
• Output voltage is shown on the digital display.
• After tests, automatically discharges the charges stored in the circuit under test.
• Operated by rechargeable Nickel-metal hydride batteries.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 3123A

• Rugged design with a hard carrying case for field use
• Detachable High Voltage Line probe
• Automatic ranges, high and low scales, indicated by different LED's
• Drip proof

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

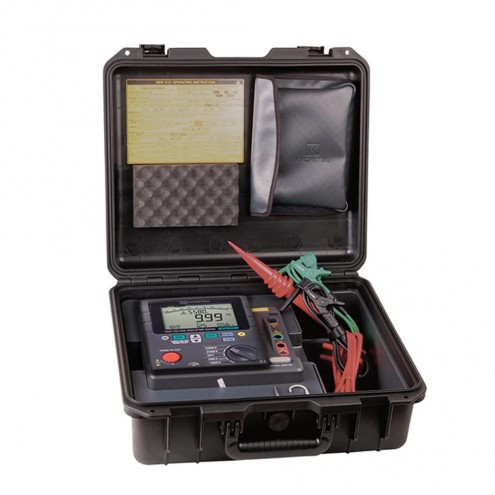

Kyoritsu 3127

• Insulation Resistance up to 10T?
• Short-Circuit Current up to 5mA
• Wide Test Voltage from 250V to 5000V
• Diagnostic Insulation Tests: IR, PI, DAR, DD, SV, RAMP (Breakdown and Burn modes), Capacitance, Leakage Current
• Wireless communication by Bluetooth for transferring and showing real-time data to PC and Android device
• Memory and Logging functions
• Filter function reduces noise interference for obtaining stable measurements
• Large back light display with Bar-Graph indication
• Robust design for field use with IP65 (lid closed)
• Powered by rechargeable battery
• Safety Standard IEC 61010-1 CAT ? 600V

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

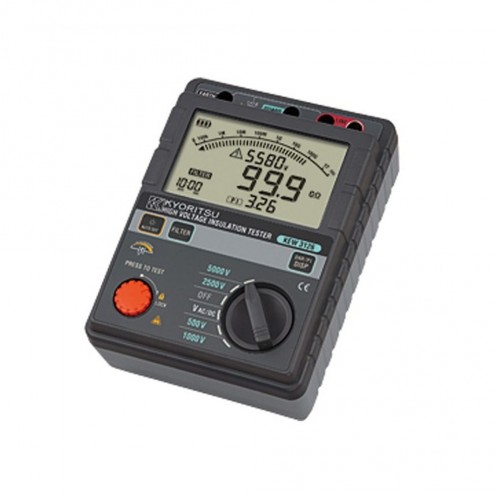

Kyoritsu 3126

• Short-Circuit Current up to 5mA
• Wide range measurements from 500V to 5000V and up to 1T?
• Large digital display with Bar Graph indication and white LED back light
• Polarization Index measurement (PI), Dielectric Absorption Ratio (DAR)
• Filter function reduces noise interference for obtaining stable measurement
• Indication of Output voltage and Discharge voltage
• Auto-discharge function and Output voltage warning function
• Auto power off and Battery Indicator
• Safety standard IEC 61010-1 CAT III 600V

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 3166

• 500V/1000MOhm (Model 3165)

• Expanded megohm scale for easy reading.

• New robust housing case to prevent damage.

• AC voltmeter scale for easy reading.

• Neck strap for both hand’s operation.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 3165

• 500V/1000M?(Model 3165)

• Expanded megohm scale for easy reading.

• New robust housing case to prevent damage.

• AC voltmeter scale for easy reading.

• Neck strap for both hand’s operation.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 3132A

• Dust and drip proof construction. (designed to IEC 60529 IP54)
• Designed to meet IEC 61010-1 and IEC 61557 safety standard.
• 1mA rated test current at the minimum resistance.
• 200mA measuring current on continuity testing.
• Automatic discharge of circuit capacitance (Any charge stored in the circuit under test will be automatically discharged after testing.)
• Live circuit warning buzzer and neon lamp.
• Small and lightweight. Shock resistant new case material.
• AC voltmeter with linear, easy-to-read scale.
• Operates on AA, R6 × 6 dry batteries.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 3128

• Microprocessor controlled high voltage insulation resistance tester with Diagnostic functions.
• Suitable for analyzing the insulation characteristics of cables, transformers, motors, generators, high-pressure switches, insulators, wiring installations, etc.
• 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V, 12000V
• Fine adjustment of voltage setting at each range is also possible
• Graphic representation of the insulation resistance and leakage current versus time on large display with bar graph and backlight.
• Can be operated from built-in rechargeable battery or from AC line.
• Automatic discharge after test with monitoring of the discharge voltage.
• Internal memory can store about 43,000 data (max).
• Robust design for field use with IP64 rating (with lid closed).

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 3023A

• Fast response and quick insulation test.
• 3 functions in one unit, insulation test with 4 voltage ranges, continuity test, AC voltage measurement
• 200mA measuring current on continuity testing
• Comparator function with PASS / FAIL and buzzer
• 0? adjustment at continuity measuring range
• Memory function up to 99 data
• Backlight LCD provides easy reading in dark locations
• Safety lock system prevents an erroneous operation on 500 and 1000 Volt ranges
• Safety standard IEC 61010-01 CAT III 600V

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

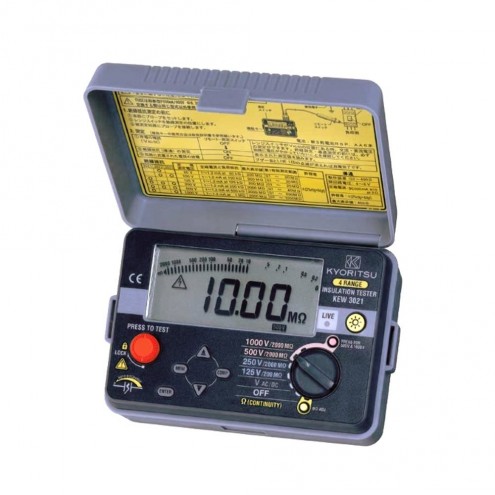

Kyoritsu 3021A

• Fast response and quick insulation test.
• 3 functions in one unit, insulation test with 4 voltage ranges, continuity test, AC voltage measurement
• 200mA measuring current on continuity testing
• Comparator function with PASS / FAIL and buzzer
• 0? adjustment at continuity measuring range
• Memory function up to 99 data
• Backlight LCD provides easy reading in dark locations
• Safety lock system prevents an erroneous operation on 500 and 1000 Volt ranges
• Safety standard IEC 61010-01 CAT III 600V

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE

Kyoritsu 3007A

• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.

Untuk harga dan informasi lebih lanjut, hubungi kami sekarang juga di sini.

PACKING SIZE AVAILABLE
